SMA OneTouch Command Details

Description

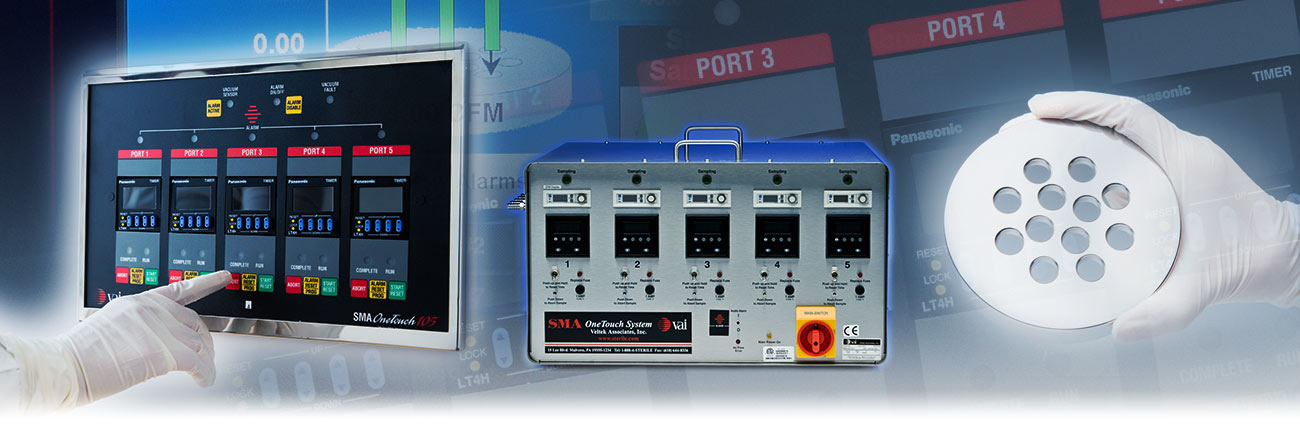

VAI’s Viable Environmental Monitoring Equipment is modular and expandable.  Therefore any number of the following components can be combined to create a SMA OneTouch® Command System.

SMA Atriums®
SMA® Digital Display Control Centers (DDC)
SMA® Digital Display Control Centers (DDC) for Isolators
SMA OneTouch® Control Panels (OTCP)

SMA Digital Display Control Centers (DDC) are used to control calibrated and timed vacuum sequences to individual or multiple SMA Atriums®. In addition, the DDC provides strict regulation of air flow (1 CFM) and will visually and audibly alarm the operator if the proper air flow is not maintained. SMA DDCs can be used in conjunction with SMA OneTouch® Control Panels. These devices allow you to manage different aspects of the sample cycle from within a controlled environment while locating the DDC and vacuum pump in a non-controlled environment.

SMA DDC for Isolators includes all the aforementioned benefits of the SMA DDC and can be easily integrated into the isolator control system.  SMA DDC for Isolators assure the non-aspiration or return of possible contaminants from the exterior environment to the isolator system by providing connections for a purge pump.

SMA OneTouch Control Panels are used in conjunction with SMA Digital Display Control Centers and SMA Atriums. SMA OneTouch Control Panels allow you to start, stop, and monitor the sample cycle from within a controlled environment while locating the SMA Digital Display Control Center and vacuum pump in a non-controlled environment.

All SMA OneTouch Command System components meet North American (ETL) and European Community (CE) safety standards.

VAI offers on-site calibration and repair services.  Please contact us for details.

Patents: www.sterile.com/patents

Products:

Hytrel Tubing
Size
STERILITY
PRODUCT #
Options
1/4'' ID
N/A
SMA-VH-1/4
Tubing
1/4'' ID
N/A
SMA-VH-1/4-ROLL
Tubing
3/8'' ID
N/A
SMA-VH-3/8
Tubing
3/8'' ID
N/A
SMA-VH-3/8-ROLL
Tubing
Connector
Size
STERILITY
PRODUCT #
Options
3/8'' ID
N/A
SMA-VARVH
Connector
Vardex Tubing
Size
STERILITY
PRODUCT #
Options
3/8'' ID
N/A
SMA-VAR-3/8
Tubing
3/8'' ID
N/A
SMA-VAR-3/8-ROLL
Tubing
SMA OneTouch Control Panel
Size
STERILITY
PRODUCT #
Options
1 Location
N/A
SMA-OT-04-101
HMI Control Panel
2 Location
N/A
SMA-OT-04-102
HMI Control Panel
3 Locations
N/A
SMA-OT-04-103
HMI Control Panel
5 Locations
N/A
SMA-OT-04-105
HMI Control Panel
SMA DDC
Size
STERILITY
PRODUCT #
Options
1 Location
N/A
SMA-DDC-1
Digital Display Control Center
2 Locations
N/A
SMA-DDC-2
Digital Display Control Center
3 Locations
N/A
SMA-DDC-3
Digital Display Control Center
5 Locations
N/A
SMA-DDC-5-5
Digital Display Control Center
10 Locations
N/A
SMA-DDC-10
Digital Display Control Center
Request Product Information View Technical Documents
  • SMA DDC and DDC for Isolators Product Uses
    • Program and view a sample time
    • Start and cancel a sample cycle
    • Monitor and control air flow
    • Provide visual notification when the sample cycle is in progress
    • Provide audible and visual alarms when
      • The sample cycle is complete
      • There is a 1 CFM error
  • SMA DDC and DDC for Isolators Features and Benefits
    • Easily connected to SMA OneTouch Control Panels and SMA Atriums
    • Cabinets are constructed of 304 Stainless Steel
    • Disinfect using select VAI products
    • Connect to an external facility control system (e.g. SCADA)
    • Meets North American (ETL) and European Community (CE) safety standards
    • Available with 1, 2, 3, 5, or 10 sampling locations
  • OTCP Product Uses
    • Program and view a sample time
    • Start and cancel a sample cycle
    • Provide visual notification when the
      • Sample cycle is in progress
      • Vacuum is present and functioning correctly
      • Sample Complete and 1 CFM audible alarms are enabled
    • Provide audible and visual alarms when
      • The sample cycle is complete
      • There is no vacuum present
      • There is a 1 CFM error
  • OTCP Features and Benefits
    • Easily connected to a SMA Digital Display Control Center
    • Constructed with a Stainless Steel bezel and clear PVC laminate face that are completely sealed for disinfection purposes
    • Disinfect using select VAI products
    • Allows sampling from multiple Atriums simultaneously or independently
    • Meets North American (ETL) and European Community (CE) safety standards
    • Available with controls for 1, 2, 3, or 5 Atrium sampling sites
